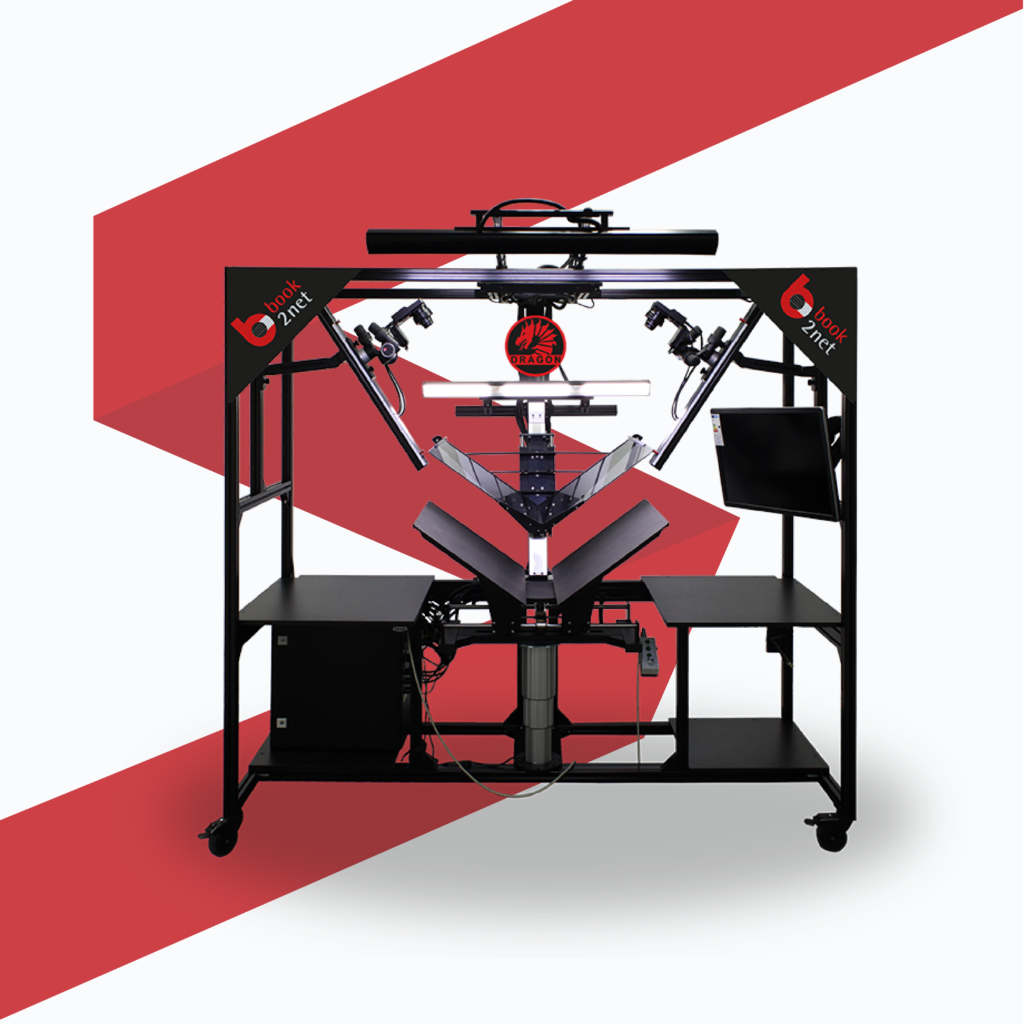

DRAGON A1+/A2+
As a high-end semi-robotic scanner, the book2net Dragon combines the advantages of a conservational book scanner with those of a professional repro studio. It thus fulfills all wishes for the flexibility and individual configuration of a V-scan system for historical holdings that only allow a small opening angle.
- Dual CMOS area sensor technology
- Selectable options: M70 (400 ppi)/M150 (600 ppi)
- Variable scan areas: A1 – A4
- Physical resolution: 400 – 800 dpi
- Special lenses Schneider (optional): 40, 45, 60, 80, 100mm

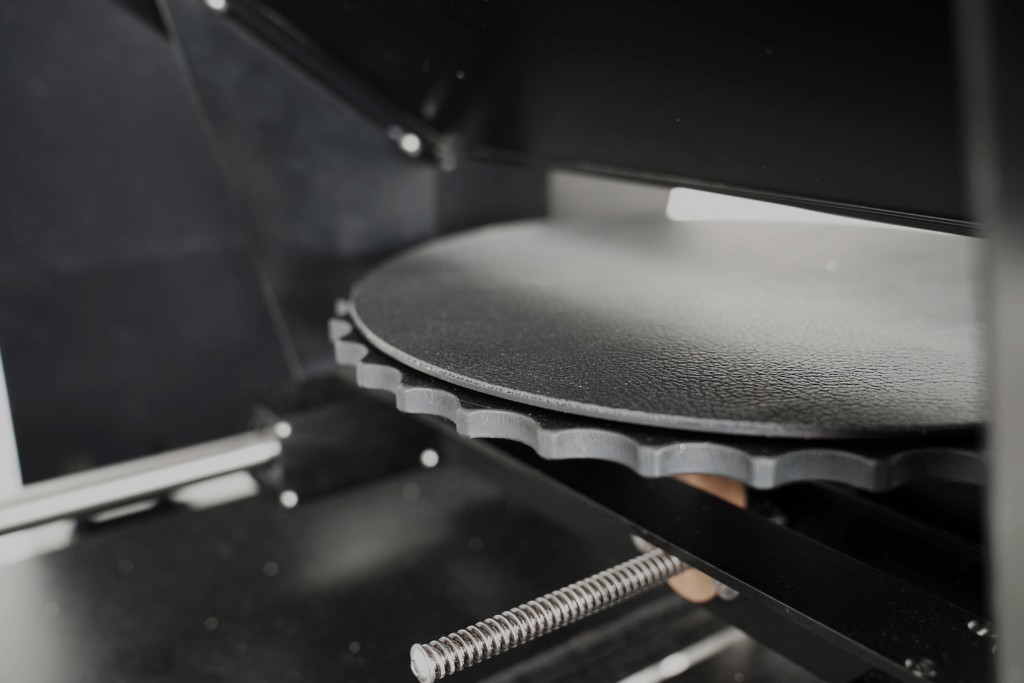

- 110° book cradle with glass plate (for optional opening angles see brochure)
- Flexible camera position and scan angle
- Height adjustment up to 15 cm (optional up to 25 cm)
- Spine width up to 10 cm (optional 20 cm), depth up to 8 cm
- Automation modes: fully automatic, semi-automatic, manual
- Adjustable LED light angle (homogeneous)
- Storable presetting of the calibration settingsCMOS
High-end V-shape scanner with outstanding characteristics matching your highest requirements
The scanning of files, books, and large-format originals up to A1 format places special demands on scanning systems and users in terms of care, quality, and productivity. In particular, very old, sensitive, and valuable documents and books must be treated with the greatest possible care, but at the same time require a high degree of system flexibility. The flexible camera positioning for formats from A1 to A4, the gentle V-pressure, the adjustable light angles, and the various automation modes make the book2net Dragon a unique scanning system – precisely adjustable to the requirements of your digitization project.
